Legge 995 Series Mortice Locks

Features

Designed to suit hollow stile metal door sections with internal depths from 39mm and narrow stile timber and french doors
The multi-function case allows easy conversion of a vestibule lock function (inside handle free) to a combination lock function (both handles locked) by a simple external operation
The reversible stainless steel latch adjusts for inwards/outwards opening and left/right hand without case disassembly
The latch is deadlatched by a stainless steel subbolt that retracts automatically with the main latch
The 995MF case will accept bolt-through fixing for 159mm vertical fixing door furniture such as the Legge 5300/5400 Series narrow stile furniture
Follower will accept 7.6mm-8mm furniture spindles, with no adjustment necessary

Door Type	Timber or Metal	Door Thickness	Timber doors - 32mm to 48mm standard. Extended cylinders, spindles and strike plates are available. Metal doors - 35mm to 48mm standard. Designed to be used on hollow stile door sections, with a minimum internal depth of 39mm
Lock Case	High purity zinc alloy	Backset	23mm standard. 30mm and 38mm available
Key Cylinder	CC4 6 Pin keyway standard, Schlage C6 pin keyway optional, Schlage SR1 Restricted keyway optional, Schlage Everest Open & Restricted keyways optional	Strike Plate	Satin stainless steel or brass

Filename: 1312 Commercial Legge 995 Narrow Style Multi Function Lock Installation Instructions and Installation Template.pdf
Size: 215 KB
Format: application/pdf

No selected resources found. Try another category.

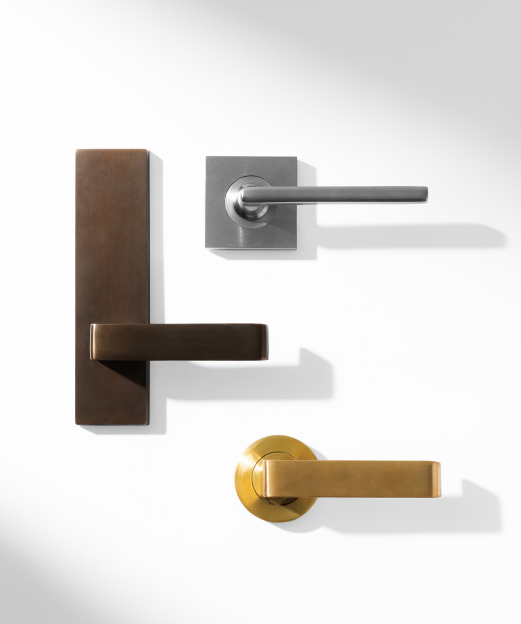

Legge's premium door hardware solutions provide security, durability, and style for both commercial and institutional spaces.
